Multi-channel Parallel Electrical Safety Tester
Product Model:
AN1633HA(F) / AN1633HB(F)Series
Application:
chargers, transformers, connectors,
contactors, relays, wires and cables,
switches, resistors, capacitors, etc.
Multi-channel Parallel Electrical Safety Tester
Product overview
Ainuo Instrument Co. Ltd has been dedicated to the research and development of electrical safety analyzers for over 30 years and has participated in drafting 16 national standards and industry calibration regulations for safety analyzers.The AN1633A(F)/AN1633B(F) Series Intelligent Safety Analyzer has the characteristics of modular, 10-channel parallel, synchronous/asynchronous control, providing comprehensive and fast safety test solutions for various electronic components such as switching power supplies,inverters,transformers,relays. etc.
Product features
| Three-in-one: ACW/DCW/IR test

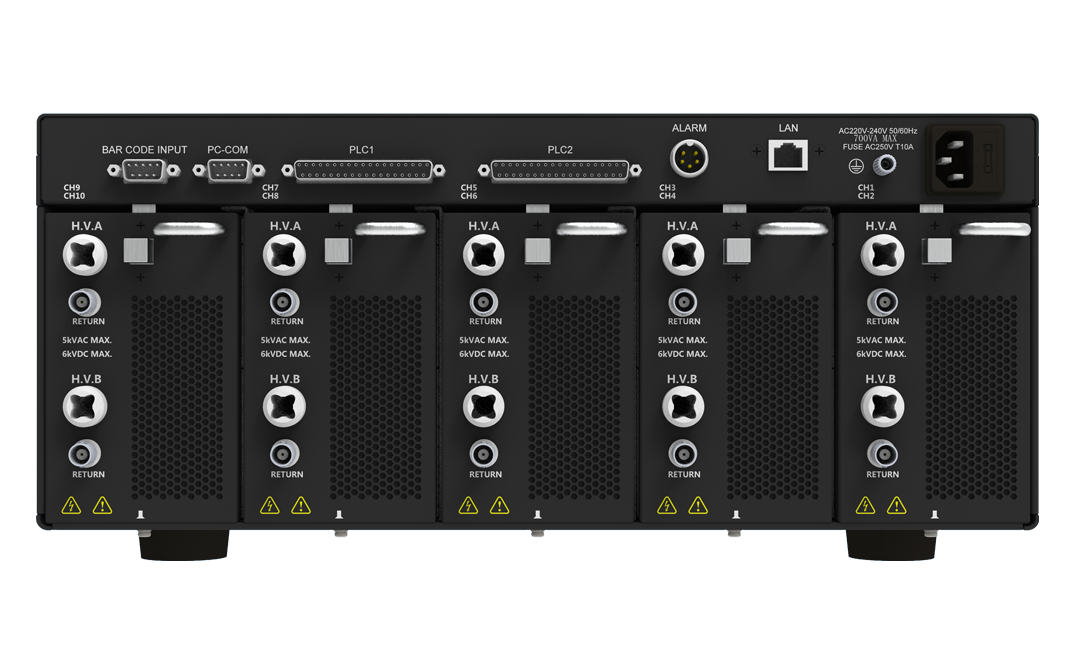

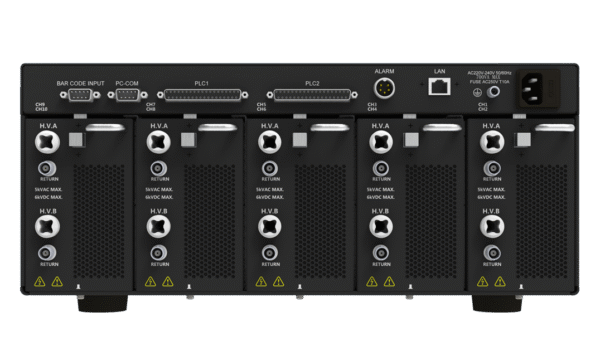

| Multi-module: built-in 1-5 independent modules,plug-and-play
| Multi-channel: 5 modules with 10 independent channels,5 modules * 3 channels for scanning
| Multiple operating conditions: synchronous/asynchronous,independent parameter settings, common loop test
| Multi-window: 10″ touchscreen, independent windows for displaying results of each channel
Product application
| Audio/video, information and communication technology equipment (GB4943.1/EC62368-1)
| Multi-point ACW/DCW and common ground test scenario for a product: it can meet the needs of power supplies,inverters, transformers, new energy vehicle PDUs, and other one-time multi-point ACW/DCW and common case(PE) test applications.
| Test multiple products simultaneously: safety test of electronic components such as chargers, lithium batteries,relays, contactors, connectors, etc., parallel test of up to 10products one time.
Technical specifications
| Model/Function | AN1633A-10(F
The suffix -46810 represents the number of channels |
AN1633B-5(F)
The suffix -2345 represents the number of modules |
| AC withstand Voltage (ACW) | 5kV/10mA | 5kV/20mA |
| DC withstand Voltage (DCW) | 6kV/8mA | 6kV/10mA |
| Insulation Resistance (IR) | 2.5kV/100GΩ | 2.5kV/100GΩ |
| Module Selection | 2-5 modules, with 2 independent test units per module | 2-5 modules, each module with 3-channel (H/L/X) for scanning |
| Number of Channels | 4/6/8/10 independent channels per analyzer | 6/9/12/15 scanning channels per analyzer |
| Start Mode | Synchronous/asynchronous test between channels | Synchronous/asynchronous test between modules |
| Operation Interface | 10″ touch screen,RS232/PLC/LAN interface, 8G memory, MES connection | |
| Dimensions (W*H*D mm) | 462*177*640 | |
